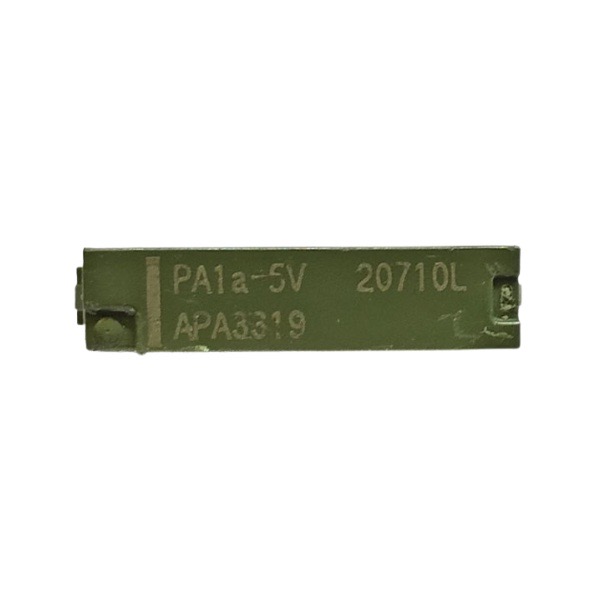

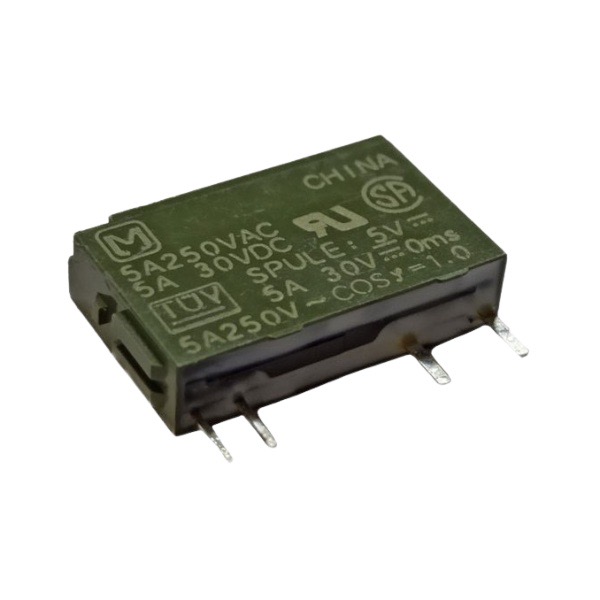

رله plc مدل PA1A-5V
Manufacturer : Panasonic
Type of relay : electromagnetic
Contacts configuration : SPST-NO
Rated coil voltage: 5V DC
Contact current max. : 5A
AC contacts rating @R(at resistive load) : 5A / 250V AC
DC contacts rating @R(at resistive load) : 5A / 30V DC
Switched voltage : max. 110V DC, max. 250V AC
Relay variant : interface
Mounting : PCB, socket
Coil resistance : 208Ω
Operate time : 6ms
Body dimensions : 20x5x12.5mm
Release time : 3ms
Coil power consumption : 120mW
Operating temperature : -40…70°C
Relay series : PA1A
Contact resistance : 30mΩ
Contact material : silver alloy
Terminal pitch : 5mm
Coil current : 24mA
Contact plating : gold-plated
Gross weight : 3 g
Prepack information : Tube = 25 pcs
